Cable Cam
DACTYLCAM PRO

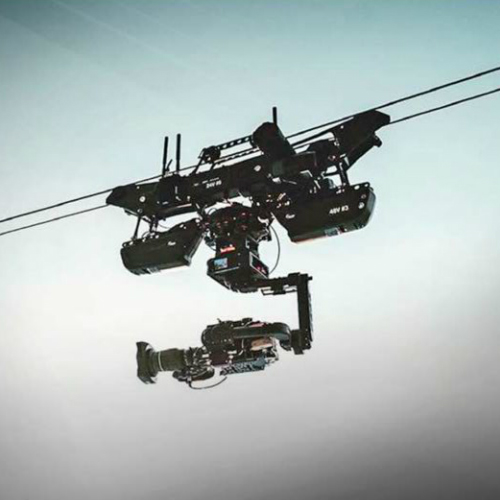

Built for the largest cinema applications, this professional cable camera (wire cam) system is designed for large cinema and broadcast productions. The 48V power drive system supports up to a 100lb payload and speeds of up to 30mph, and can work with any stabilised head. The adjustable drive wheel allows users to modify the tension, adapting to different speeds, inclines, and wet conditions.
Specs/Features
System:
Self-powered cable camera trolley
Designed to carry stabilised heads and full cinema camera packages
Compatible with most gimbals and remote heads via Mitchell mount
Maximum Payload:
Up to 45kg (~100lb)
Max. Speed:
Up to 48km/h (~30mph)
Max. Cable Length:
~300m (~1000ft )
Max. Cable Angle:
~10° incline
Drive System:
48V high-torque motor system
Battery:
Dual batteries
Operating Time:
~8 – 10 hours depending on usage.
Control & Operation:
Operated via Pulse wireless controller
Adjustable settings:
Speed
Acceleration and braking
Torque and traction control
Programmable digital end stops
Features:
Adjustable drive wheel tension for different cable conditions
Active traction control to reduce wheel slip
Digital safety stops for safe operation
Accessory power outputs including 24V and D-Tap connections
