Remote Heads

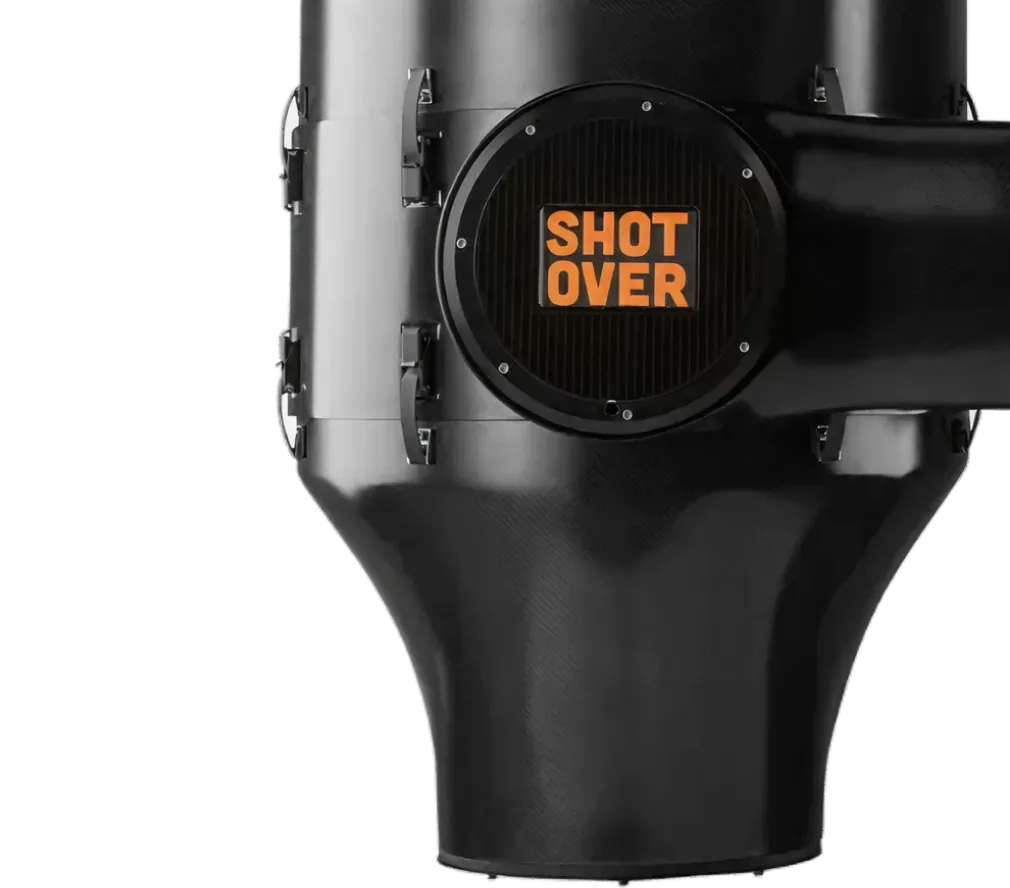

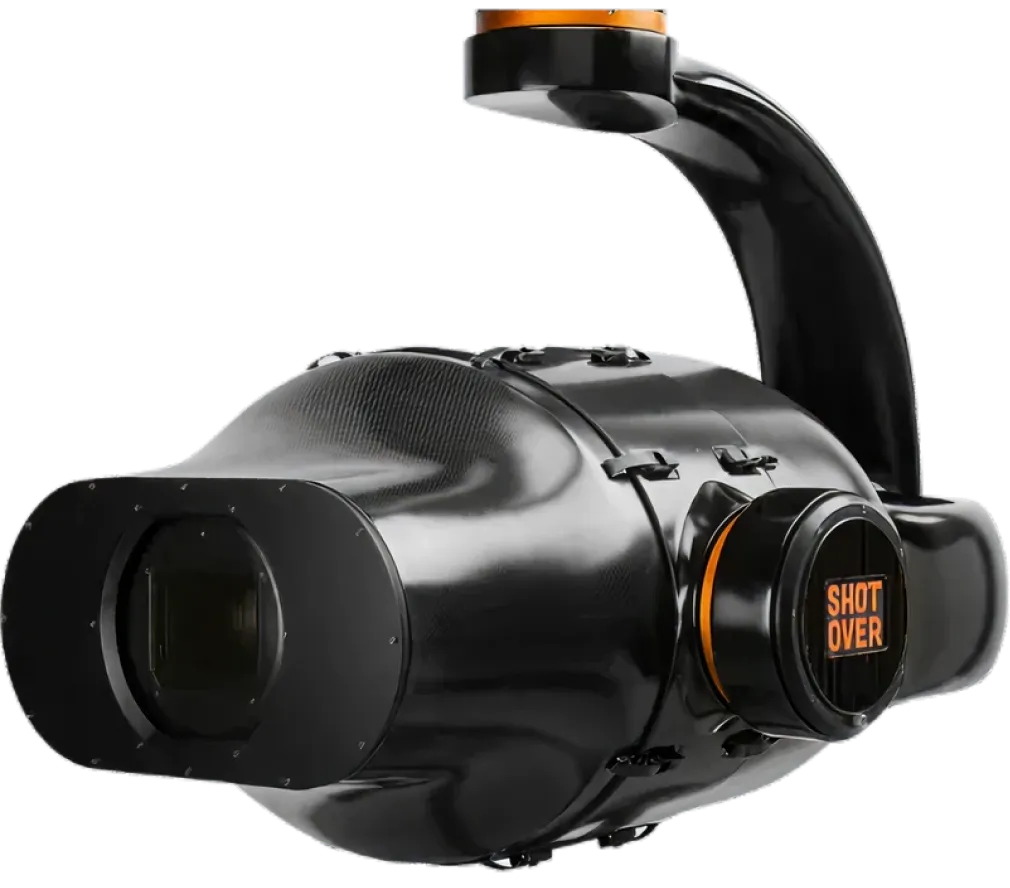

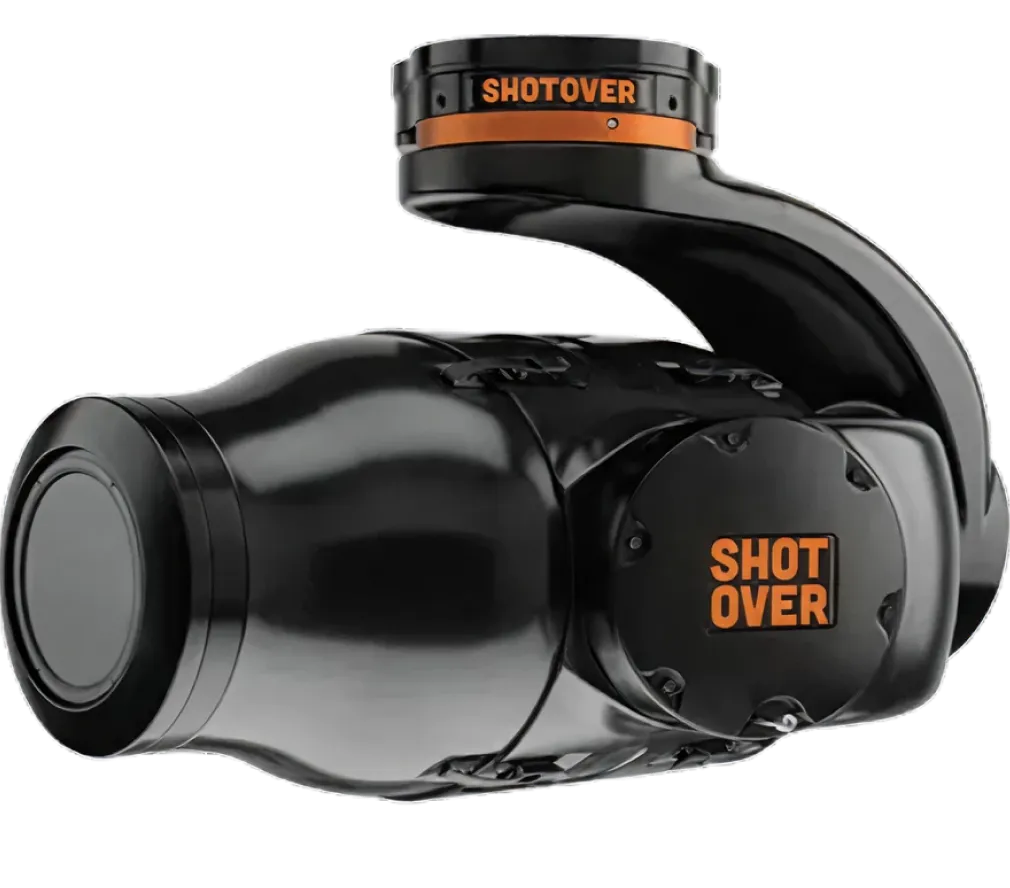

Shotover F1
A 6-axis gyro stabilised platform that delivers unshakable stability with look down capability for use inverted, or right side up on almost anything that moves. It rigs fast and accommodates over 175 camera and lens combinations, for the look you want. Its compact carbon fibre construction means it ships as excess baggage on commercial lights worldwide with no export restrictions.
Specs/Features
Stabilisation:
6-axis gyro stabilisation with no gimbal lock
High-performance sensors with advanced control algorithms
Distributed multi-processor closed-loop servo control for smooth motion
Pan:
360° continuous rotation
Tilt:
+45° to −140° (straight look-down capability)
Roll:
±85° (auto-horizon or steerable)
Max. slew rate:
~100° per second
Compatibility:
ARRI ALEXA series
RED DSMC / DSMC2 cameras
Sony F55 and similar broadcast cameras
Turret payload capacity:
Up to ~ 59kg (130lb)
Gimbal weight:
~29 kg without payload
Power Input:
19 – 32V DC
Max. Power Draw:
~12A at 28V
Data Interfaces:
Fibre optic, Ethernet, CAN Bus, RS-422
Construction:

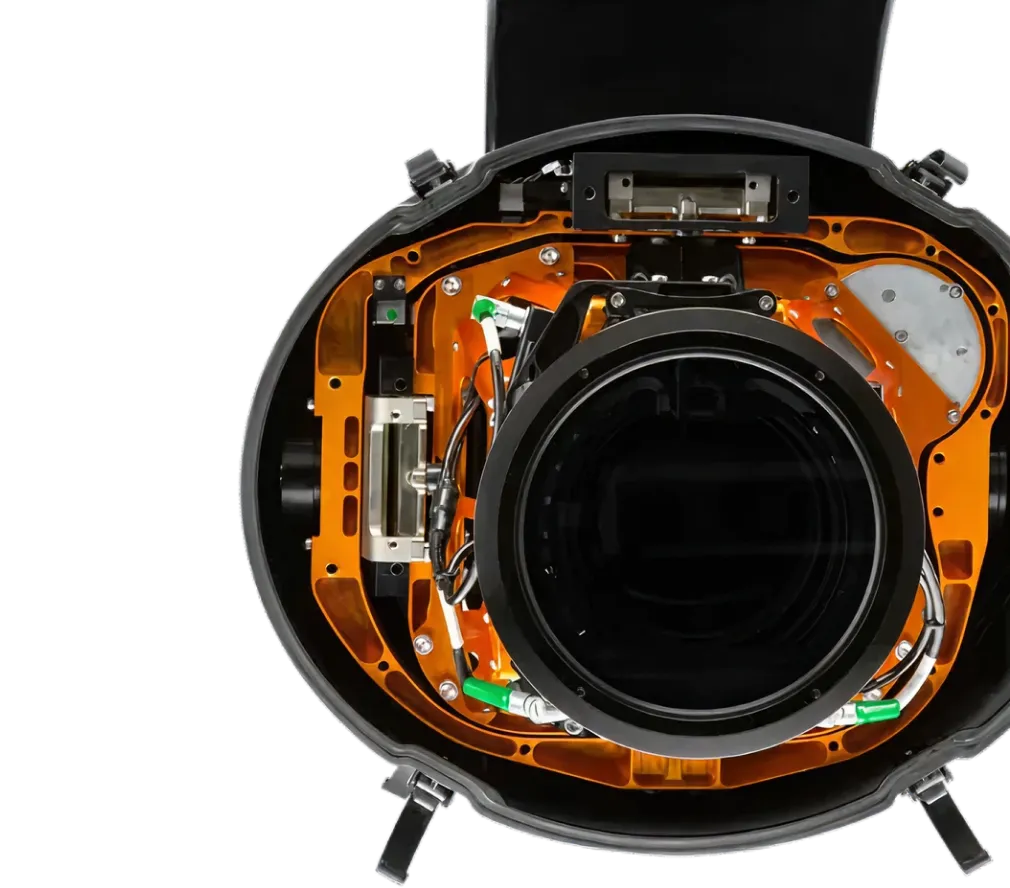

Modular carbon-fibre turret design
Compact system designed for transport as excess baggage on commercial flights
Mountable on helicopters, vehicles, boats, and other moving platforms
Features:
Straight look-down capability for aerial filming
Supports inverted or upright operation
Quick rigging and flexible mounting options
Fibre optic video transmission for high-quality signal output
